Security Scanning

Kube Sentinel integrates with the Trivy Operator to provide comprehensive security scanning for your Kubernetes workloads. This includes vulnerability scanning, configuration auditing, and secret detection.

Prerequisites

To use security scanning features, you need to install the Trivy Operator in your cluster:

# Add the Aqua Security Helm repository
helm repo add aqua https://aquasecurity.github.io/helm-charts/
helm repo update

# Install Trivy Operator
helm install trivy-operator aqua/trivy-operator \
  --namespace trivy-system \
  --create-namespace \
  --set trivy.ignoreUnfixed=true

For more installation options, see the Trivy Operator documentation.

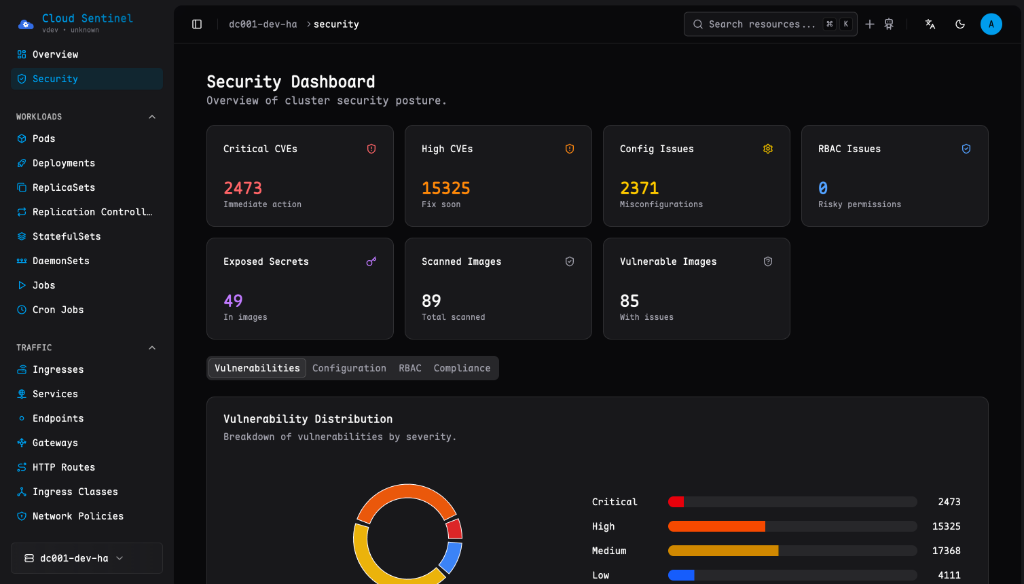

Security Dashboard

Once Trivy Operator is installed, navigate to Security in the sidebar to access the cluster-wide security dashboard. The dashboard provides:

• Summary Cards - Quick overview of critical vulnerabilities, config issues, and exposed secrets
• Vulnerability Distribution - Breakdown by severity (Critical, High, Medium, Low)
• Top Vulnerable Workloads - Workloads with the most security issues
• Top Misconfigured Workloads - Workloads with configuration problems

Report Types

Kube Sentinel displays information from multiple Trivy report types:

Vulnerability Reports

Scans container images for known CVEs (Common Vulnerabilities and Exposures). Each vulnerability includes:

• CVE ID with link to details
• Affected package and version
• Fixed version (if available)
• Severity rating

Configuration Audit Reports

Checks Kubernetes resource configurations against security best practices:

• Running containers as root
• Missing resource limits
• Privileged containers
• Missing security contexts

Exposed Secret Reports

Detects secrets accidentally committed to container images:

• API keys
• Passwords
• Private keys
• Tokens

Cluster Compliance Reports

Evaluates your cluster against security benchmarks:

• CIS Kubernetes Benchmark
• NSA/CISA Kubernetes Hardening Guide
• Pod Security Standards (PSS)

The Compliance tab on the dashboard shows pass/fail rates for each benchmark.

Resource-Level Security

Each workload (Deployment, StatefulSet, DaemonSet, Pod, etc.) has a Security tab that shows:

1. Vulnerabilities - CVEs found in container images
2. Config Audit - Kubernetes configuration issues
3. Secrets - Exposed secrets in images

Trivy Operator Configuration

For optimal results, enable all scanner types in Trivy Operator:

# values.yaml for Trivy Operator Helm chart
trivy:
  # Enable vulnerability scanning (default)
  vulnScanner: true
  # Enable config audit scanning
  configAuditScannerEnabled: true
  # Enable secret scanning
  exposedSecretsScannerEnabled: true

Troubleshooting

No Security Data Showing

If the security dashboard shows no data:

1. Check Trivy Operator is installed:

   kubectl get pods -n trivy-system

2. Verify CRDs exist:

   kubectl get crd | grep aquasecurity

3. Check for VulnerabilityReports:

   kubectl get vulnerabilityreports -A

Reports Not Appearing for New Workloads

Trivy Operator scans workloads on creation. If reports are missing:

1. Check Trivy Operator logs for errors
2. Ensure the namespace is not excluded from scanning
3. Wait for the scan to complete (can take a few minutes)
