OAuth Setup Guide

This guide explains how to configure OAuth authentication for Kube Sentinel, supporting multiple authentication providers.

Creating OAuth Applications at Providers

1. Log in to your OAuth provider account (such as GitHub, Google, etc.).
2. Create a new OAuth application and fill in the necessary information.
3. In the redirect URI, fill in https://${HOST}/api/auth/callback, replacing ${HOST} with your Kube Sentinel deployment address.
   1. For example, if your Kube Sentinel is deployed at kube-sentinel.example.com, the redirect URI should be https://kube-sentinel.example.com/api/auth/callback.
   2. Kube Sentinel uses the backend Host and protocol from the request to generate the redirect Host by default.
   3. If kube-sentinel is deployed behind a proxy, it will read the X-Forwarded-Host and X-Forwarded-Proto headers by default.
   4. If the above information is not available, you can configure the HOST environment variable to specify explicitly.
4. Record the generated Client ID and Client Secret.

Configuration

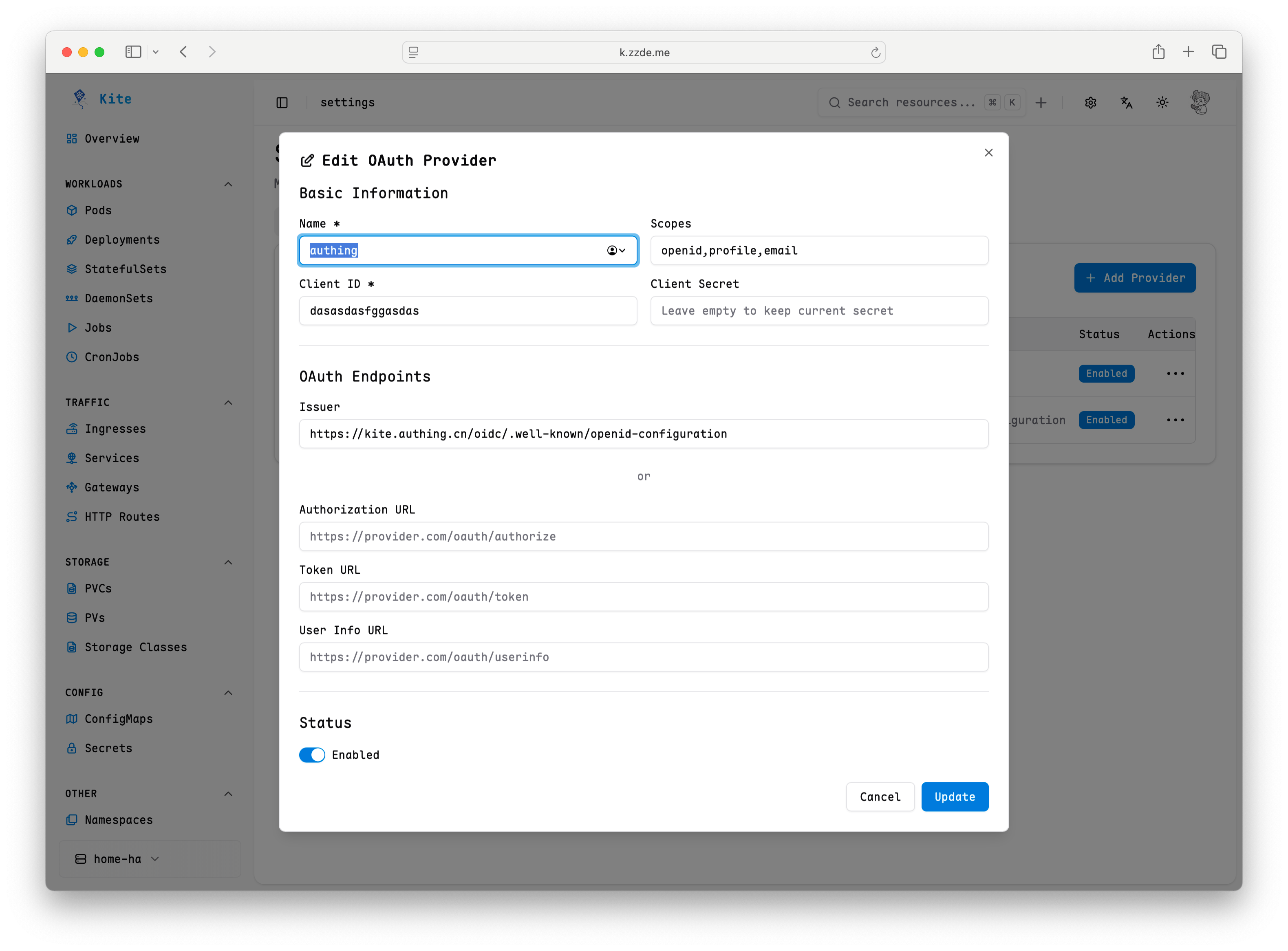

In the user interface with the admin role, the settings entry will be displayed in the upper right corner of the page.

Follow the instructions on the page to fill in the basic information to use OAuth login.

Common Issues

User shows no permissions after login

By default, even after successful login, Kube Sentinel will not grant any permissions to the user. You need to manually configure RBAC rules to grant access.

See the RBAC Configuration Guide for details.

How to map OAuth users to RBAC roles?

You can configure the mapping relationship between OAuth users and RBAC roles in the settings. For specific steps, please refer to the RBAC Configuration Guide.

Login failure

Generally, these are configuration issues. You can check the following points:

1. Ensure the OAuth application's Client ID and Client Secret are configured correctly.
2. Check if the redirect URI matches what is configured in the OAuth application.
3. View Kube Sentinel logs for more error information.
